TFBDT-5000 100 - Lin. Smoke detector RX 100m

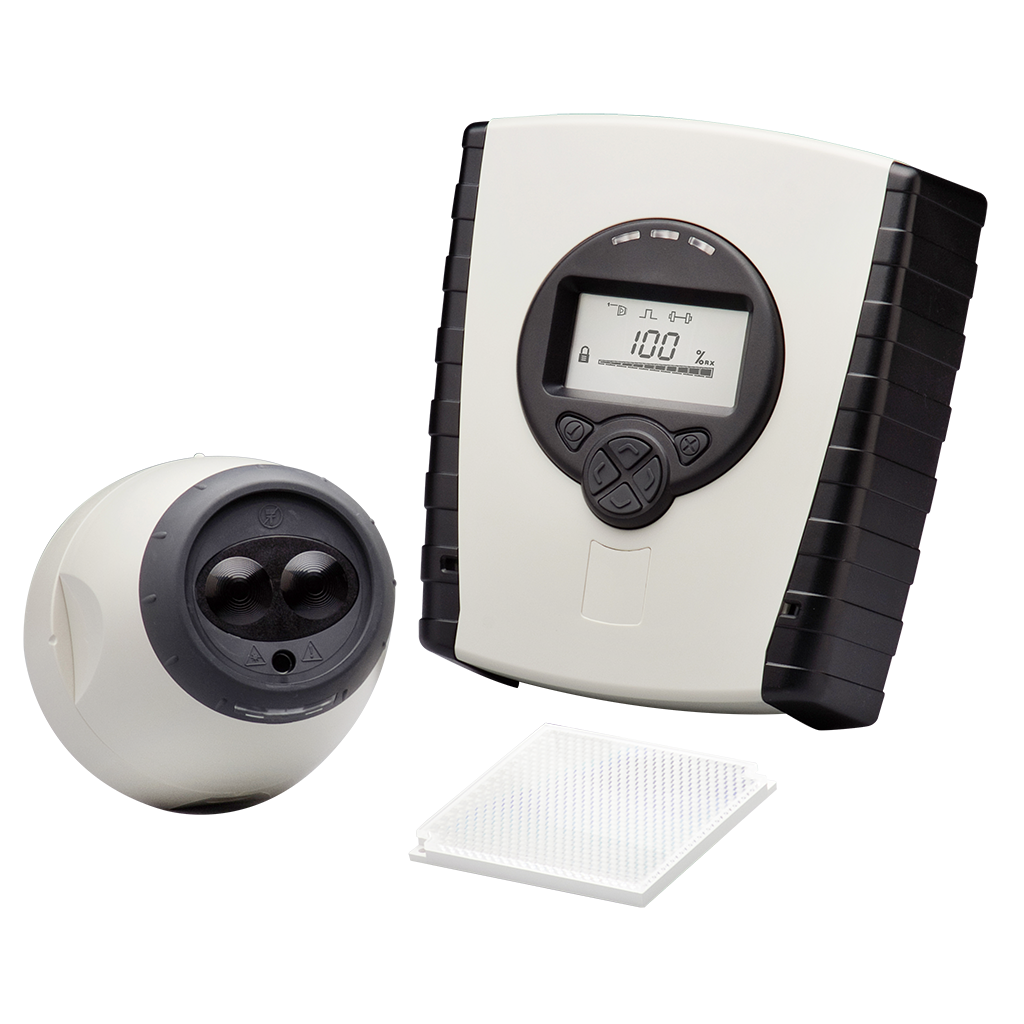

Linear-type optical smoke detector with reflective infrared light The system is composed of a controller wired to a receiver-transmitter and a reflection panel. The controller can be installed remotely, the electrical connection between the controller and the receiver-transmitter is made with 2 wires. It is possible to connect a second receiver-transmitter to double the detection area. Independent functional settings as well as alarm and failure outputs for each pair – Programmable sensitivity – Range 50 to 100m – Integrated automated laser pointer – Dynamic compensation of the deterioration of sensitivity due to dust deposits – Automatic compensation of misalignment due to structural sinking – Good vibration tolerance – High false alarm immunity FM, UL, VDS, NF, CPR, EN 54-12 – Certification number 0832-CPR-F0390

Item no.

Description

TF9TFBDT5000100 Lin. Smoke detector RX 100m
