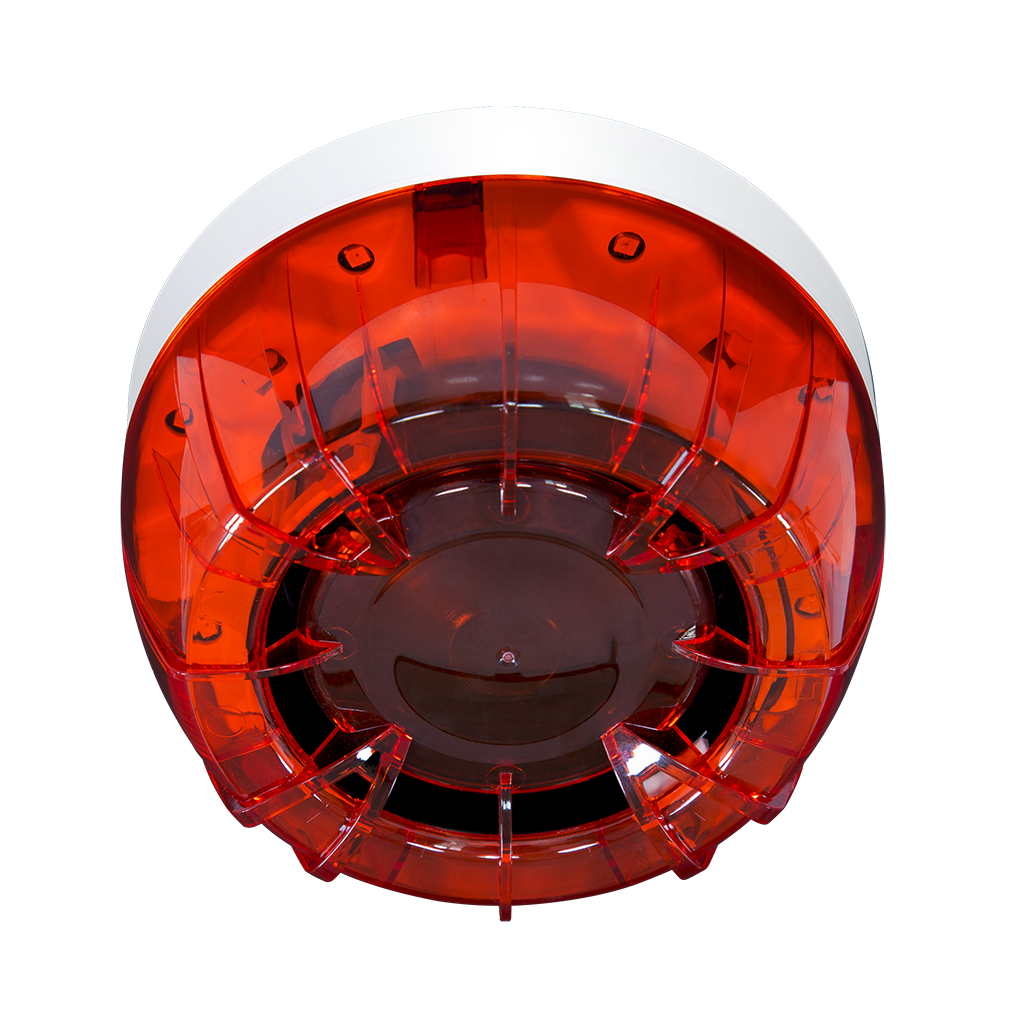

TFIS01 - Addr. Indoor siren
Addressable siren, composed of up to 2 supervised physical/logical units, which are individually identified by the system and occupy up to 2 addresses The dual ID or device alias mode permits the functional duplication of the siren, so that two different signaling modes and sound types can be programmed. Programmable functions: 2 functioning modes (acknowledgeable, non-acknowledgeable), 2 signaling modes (optical acoustic, acoustic), 64 sound types, 2 volume levels, activation delay, activation time, activation can be subjected to formula – Integrated RSC® technology: programming, remote management of all functioning parameters – Dual loop isolator – Connection to loop – Proprietary high-speed protocol Fire-Speed – Mounting on universal base TFBASE01 – IP22 – Casing ABS V0 – Dimensions (Ø x H) 120 x 65mm – Red color EN 54-3:2001 + A2:2006 – EN 54-17:2005 – Certification number 1293-CPR-0422Dimensions (Ø x H) 120 x 65mm
Item no. |
Description |
---|---|
TF5TFIS01 | Addressable siren, composed of up to 2 supervised physical/logical units, which are individually identified by the system and occupy up to 2 addresses – Integrated RSC® technology – Dual loop isolator – Proprietary high-speed protocol Fire-Speed – EN 54-3, EN 54-17 |
