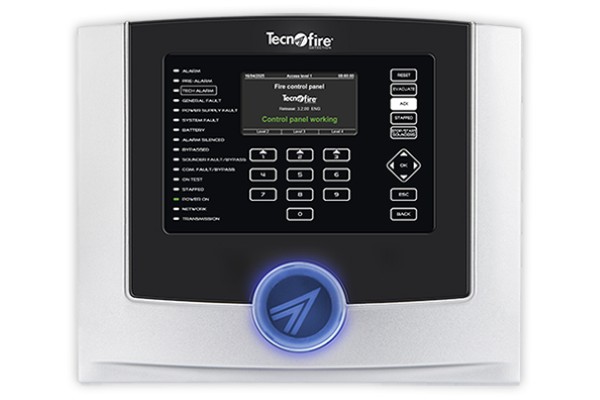

TFA1-298
Addressable fire detection control panel 1 Loop.
Addressable fire detection control panel. Equipped with 1 detection loop. The loop can manage: 199 detectors and 99 modules. 1 RS485 serial bus for expansion device connection, up to 5 devices chosen from: repeater panels and/or communication devices. The control panel manages 150 fire detection or technical zones and 100 virtual detection zones. Automated management: 50 alarm plans, 8 time ranges, 100 formulas and customizable or permanent four-year calendar. Advanced management with logic based on the application of formulas that dynamically relate the operating status of the system devices. The control panel is equipped with 3 specialist signal outputs and 2 openly programmable signal outputs. Monitored system mode functions. User interface: 4.3” color display, programming and management keypad, 16 signal LED, speech synthesis and multifunctional acoustic signal buzzer. USB port. Serial printer management. System RSC® management: programming, remote management and control. Modular 2.7A switching power supply unit. Battery capability: 2 x 12V-7.2Ah. Aluminum and steel casing. Protection rating IP3x. Dimensions (L x H x D) 361 x 301 x 107mm. Approved EN 54-2: 1997+ A1:2006 - EN 54-4: 1997+ A1:2002 + A2:2006. Certificate 0051-CPR–0444. System compatibility UNI EN 54-13:2020.
Code: TF1TFA1298-IT
