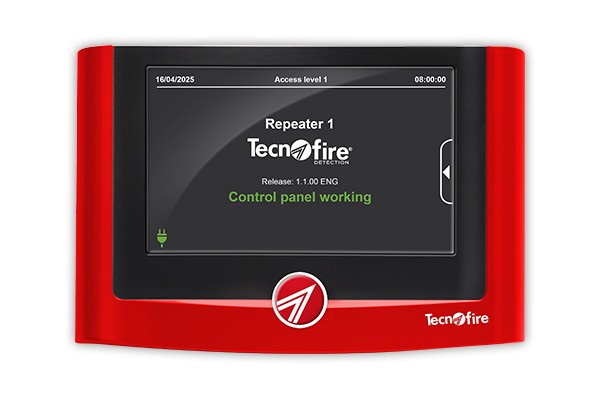

Management and control repeater panel, equipped with a multifunctional user interface consisting of: 4.3” TFT capacitive touch screen display, speech synthesis with customizable vocabulary, multifunctional acoustic signal device. The panel automatically recognizes the device to which it is connected and consequently adapts its functions to the particular operating context. The panel connected to the bus of the TSA1 and TFA1-298 control panels acts as control panel repeater. The panel connected to the bus of the TSM1 extinguishing module and the TF ONEAIR detector, acts as a management panel, taking complete control of the device functions.
The panel displays the commands that manage the operation of the module and, in the event of activation, makes the sequence of the extinguishing cycle visible, dynamically notifying the countdown of the delays that control the different phases. Supported System Commands: Silencing and Control panel Restoring/Associated Module, Silencing and Siren Restoring, Evacuation, Extinguishing Events, Monitored Mode, Exclusion and Inclusion of devices. Built-in flash memory for vocabulary customization, manageable from a personal computer as an external disk. RS485 bus connection.
Surface or flush box 503 mounting. Refined ultra-thin design. Red cover.
Certification integrated in TSA1 series control panels and TSM1 extinguishing module.
