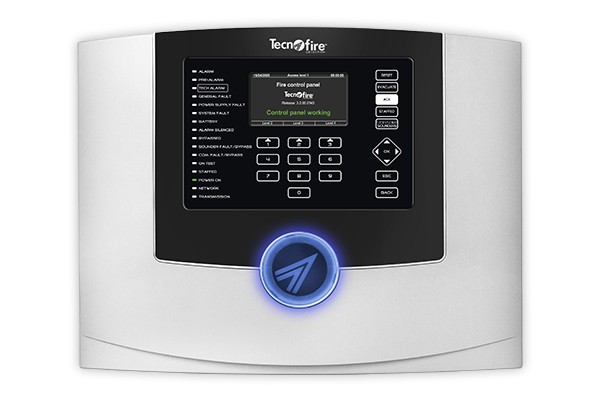

TFA2-596
Addressable fire detection control panel 2 Loops.
Addressable fire detection control panel. With 2 detection loops. Each detection loop can manage: 199 detectors and 99 modules. 2 RS485 serial buses for expansion device connection, up to 16 devices chosen from: repeater panels and/or communication devices. The TFA2-596 control panel can be part of a network of Tecnofire units. The control panel manages 300 fire detection or technical zones and 100 virtual detection zones. Automated management: 100 alarm plans, 32 time ranges, 200 formulas, server cyclic testing and customizable or permanent four-year calendar. Advanced management with logic based on the application of formulas that dynamically relate the operating status of the system devices. The control panel is equipped with 4 specialist signal outputs and 6 openly programmable signal outputs. TLC Section: IP communication port, 4 communication channels: Local Server, Remote Server, Tecnoserver, Call back, 8 event notification communicators, 2 IP address contacts for each communicator, 5 communication protocols, 15 transmissible event categories. Monitored system mode functions User interface: 4.3” color display, programming and management keypad, 16 signal LED, speech synthesis and multifunctional acoustic signal buzzer. USB port. Serial printer management. System RSC® management: programming, remote management and control. Modular 5A switching power supply unit. Battery capability: 2 x 12V-12Ah. Aluminum and steel casing. Protection rating IP3x. Dimensions (L x H x D) 441 x 347 x 149mm. Approved EN 54-2: 1997+ A1:2006 - EN 54-4: 1997+ A1:2002 + A2:2006. Certificate 0051-CPR–0389. System compatibility UNI EN 54-13:2020. TFA4-1192
Code: TF1TFA2596-IT
