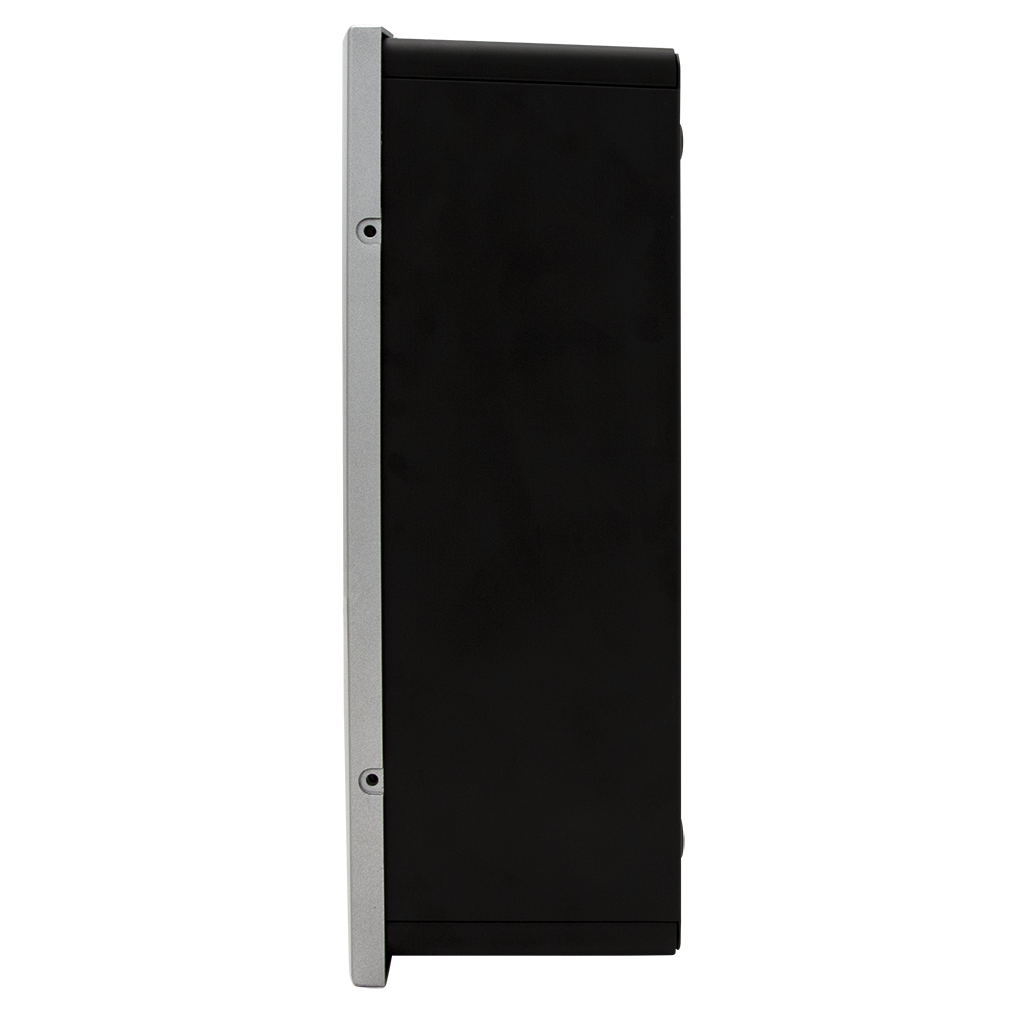

TFA4-1192 - Addressable 4-loops fire alarm panel
4-loops addressable fire alarm panel managing up to 1192 devices via the loops - Proprietary protocol Fire-Speed - True color TFT display 482 x 272 pixel - Integrated speaker with volume setting - Programmable local or master/slave functioning mode - Max. 16 repeater panels with 7" TFT display - 2 RS485 serial buses (master and slave) - 10 outputs - 300 zones programmable as fire detection or technical zone - 100 virtual zones to be used as operation category for the Boolean functions - 400 Boolean functions - 200 alarm plans to be associated to the zones - 32 time periods to be used as operation category - 5A switching power supply Fly-back type - USB port - Serial port - Ethernet hub - Internet protocols Tecnoalarm, Contact-ID, SIA - Integrated RSC® technology: programming and monitoring via LAN/WAN, Hardware Coherence Control, Parametric Analysis and Device Monitor tools and relative reports EN 54-2:1997 + A1:2006 - EN 54-4:1997 + A2:2006 - Certification number 0051-CPR-0388Aluminum/steel casing - Dimensions (L x H x D) 441 x 347 x 149mm - IP30 - Bay for 2x 12V/12Ah batteries (not included)
Item no. |
Description |
---|---|
TF1TFA41192-UK | 4-loops addressable fire alarm panel managing up to 1192 devices via the loops - Proprietary protocol Fire-Speed - EN 54-2, EN 54-4 |
