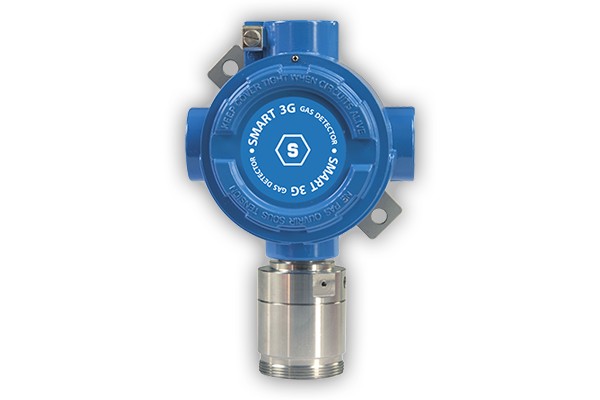

Catalytic detector. Operating pressure 80KPa...110KPa, maximum air speed <6m/s.
Zero tracker and self-diagnosis. Plug-in calibration tool. 4-20mA proportional signal output.
Optional 3 relay board that can be housed in the casing. 12V...24V DC supply voltage.
Maximum consumption 130mA @ 12V. Operating temperature -20°C...+50°C. Protection rating IP65.
Die-cast aluminum casing. Dimensions (L x H x D) 130 x 155 x 90mm.
Approved EMC EN 50270:2011, EN 61000. Certification: ATEX Exd II2G e SIL1.
