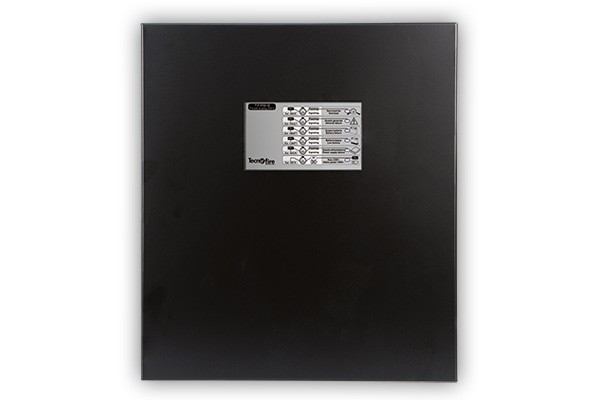

TFPS-5
Additional addressable power supply unit.
Additional addressable power supply unit. EN 54-4 approved for the supply of fire detection and alarm systems for buildings. EN 12101-10 approved for the supply of smoke and heat evacuation equipment and systems and smoke control systems. Power supply voltage 230V AC. Rated output data: voltage 27.6V DC maximum current 5A. The unit is equipped with 3 independent outputs for the power supply of utilities. Each output delivers a maximum current of 1.1A. Automatic testing and battery release functions for deep discharge. Front control panel with 6 operating status LED. Fault signal output: free changeover relay. Casing for 2 x 12V 17Ah buffer batteries. RSC® management: programming, remote management and control. Loop connection. Dual short-circuit isolator. Operating temperature -5°C... +40°C. Protection rating IP3x. Metal casing. Black color. Dimensions (L x H x D) 320 x 365 x 170mm. Approved EN 54-4:1997 + A1:2002 + A2:2006 - EN 54-17:2005. EN 12101-10. Certification: 0051-CPR-0432.
Code: TF5TFPS5
