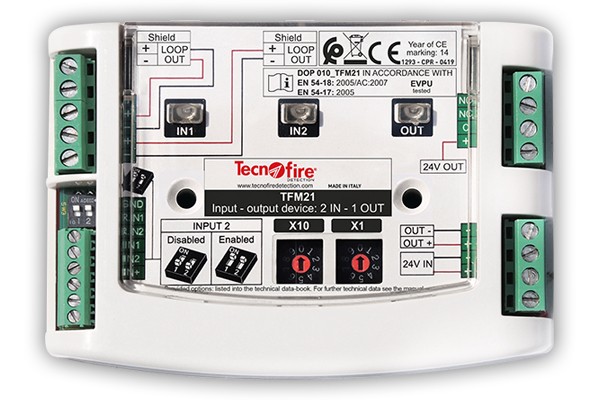

TFM21
Addressable module equipped with 2 inputs and 1 output.
Addressable module equipped with 2 inputs and 1 output, individually identified by the system. Inputs: connection in Alarm or Fault mode, programmable operating criteria. 2 outputs for repeaters. Inputs operating statuses can be used as operands in formulas. Output: connection in contact mode or controlled line. Programming: operating criteria, activation time and delay. Output activation subject to formula. 3 input and output status indicator LED. Protected service input for powering external devices. RSC® management: programming, remote management and control. Loop connection. Dual short-circuit isolator. Fixing on a surface or on a DIN bar with TFDIN accessory. Protection rating IP4x. ABS casing. White color. Dimensions (L x H x D) 112 x 78 x 25mm. Approved EN 54-18:2005/AC:2007 - EN 54-17:2005. Certification: 1293-CPR-0419.
Code: TF4TFM21
