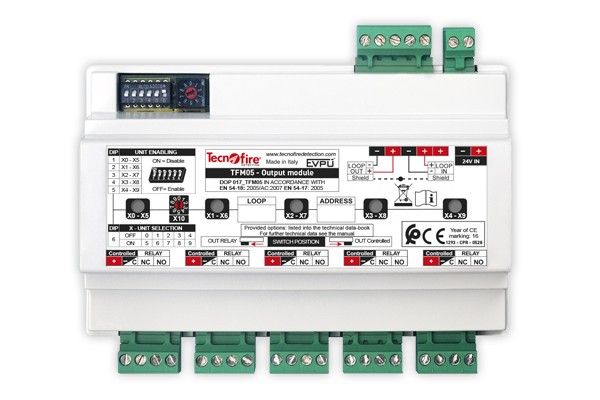

TFM05-HP
Addressable module equipped with 5 outputs.
Output connection in contact mode or controlled line. Programming: operating criteria, activation time and delay. Outputs activation subject to formula. 5 output status indicator LED. Protected service inputs for powering external devices. RSC® management: programming, remote management and control. Loop connection. Dual short-circuit isolator. Fixing on a surface or on a DIN bar. Protection rating IP4x. ABS casing. White color. Dimensions (L x H x D) 144 x 92 x 71.5mm. Approved EN 54-18:2005/AC:2007 - EN 54-17:2005. Certification: 1293-CPR-0528.
Code: TF4TFM05HP
