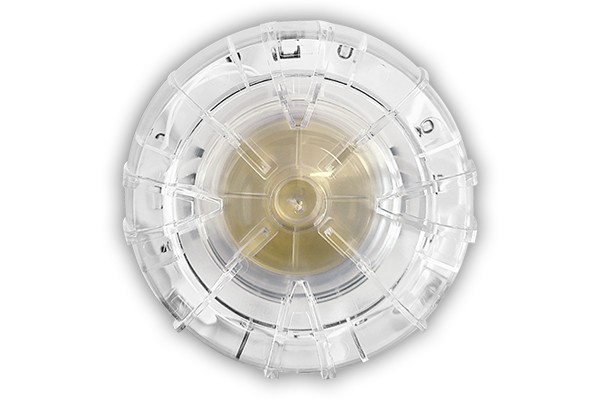

TFIS01W
Addressable optical-acoustic warning device.
Addressable optical-acoustic warning device, for VID fire alarm signal. Sound pressure 102dB(A) @ 1m. Type A for indoors. Dual address for operation duplication. Programmable functions: 6 operating criteria, 64 sound modes, volume adjustment 2 levels, activation time and delay, flashing excluded, activation. Signaling activation subject to formula. RSC® management: programming, remote management and control. Loop connection. Dual short-circuit isolator. Mounting with universal base TFBASE01. Protection rating IP22. Operating temperature -15°C... +70°C. PC-ABS casing. Red or white optical diffuser color. Dimensions (D x H) 120 x 65mm. Approved EN 54-3:2001 + A1:2002 + A2:2006 - EN 54-17:2005. Certification: 1293-CPR-0422.
Code: TF5TFIS01W
