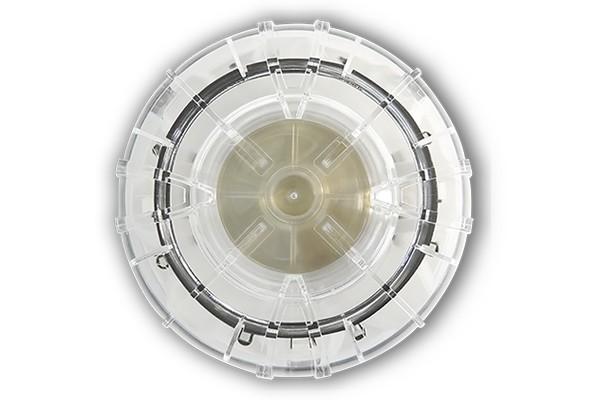

TFIES02
Addressable optical-acoustic warning device.
Addressable optical-acoustic alarm device, for VAD fire alarm signal, category O (Open class). Optical coverage O-4.6-2, volume 9.2m3. Sound pressure 101dB(A) @ 1m. Type B for outdoor use. Dual address for operation duplication. Programmable functions: 6 operating criteria, 64 sound modes, volume adjustment 2 levels, end-of-alarm tone, activation time and delay, flashing and/or acoustic signal can be excluded. Optical synchronized signaling. Signaling activation subject to formula. RSC® management: programming, remote management and control. Loop connection. Dual short-circuit isolator. Mounting with universal base TFBASE01. Protection rating IP33C. Operating temperature -25°C... +70°C. PC-ABS casing. White optical diffuser color. Dimensions (D x H) 120 x 65mm. Approved EN 54-3:2001 + A1:2002 + A2:2006 - EN 54-23:2010 - EN 54-17:2005. Certification: 1293-CPR-0825.
Code: TF5TFIES02
