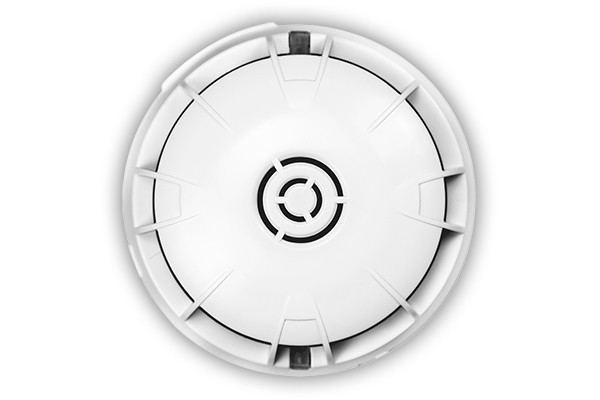

TFDA-TR1
Addressable heat detector
Addressable heat detector with fixed temperature or rate-of-rise detection technology. Maximum precision in determining the ambient temperature.
Programmable functions: thermal Category: A1-58° / A2-68° /B-78°, rate-of-rise suffix: R or S, formula and management criteria association for TFBASE-SIREN or TFRIP-SMART. The operating statuses of the detector can be used as operands in the formulas managed by the control panels. RSC® management: programming, remote management and control. Loop connection. Dual short-circuit isolator. Mounting with universal base TFBASE01.
Protection rating IP22. ABS casing. White colour. Dimensions with base (D x H) 100 x 52mm. Approved EN 54-5:2017 + A1:2018 - EN 54-17:2005. Certification: 1293-CPR-0526 rv.1
Code: TF3TFDATR1
