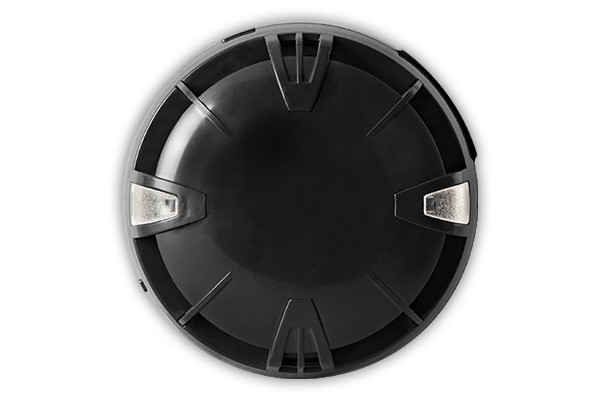

TFDA-STR2BK
Configurable combined detector configurable.
Configurable combined detector, can be used with analogue addressed or conventional control panels. The detector consists of two separate and independent detection sections, an optical smoke detector and a Category A1-58°, Suffix R thermal detector. The detector integrates an NFC transceiver with which, by means of a smartphone and the Tecnofire ID App, it is possible to configure the device and view: identification data, the alarm counter, the graph of the last alarm detected (optical detector only) and the data required to manage the detector review service. Maximum precision in temperature detection and analysis of smoke captured by the optical chamber. Control and dynamic compensation of optical chamber sensitivity, automatic maintenance threshold management. Programmable functions: 3 sensitivity levels, excludable prealarm signaling, excludable optical detection section, formula association and management criterion for TFBASE-SIREN or TFRIP-SMART. The functional states of the detector can be used as operands in the formulas managed by the control panel. RSC® management: programming, remote management and control. Double line isolator. Universal base mounting TFBASE01. Protection rating IP22. ABS casing. Available colors white or black. Dimensions with mounting base (D x H) 100 x 52mm. EN 54-7:2018 - EN 54-5:2017 + A1:2018 - EN 54. Certification: 0051-CPR-3133.
Code: TF3TFDASTR2BK
Use TFDA-STR2BK with
Tecnofire ID App
Tecnofire ID allows you to view the graph of the last alarm, the alarm counter, identification data and data necessary for managing the detector review service.
