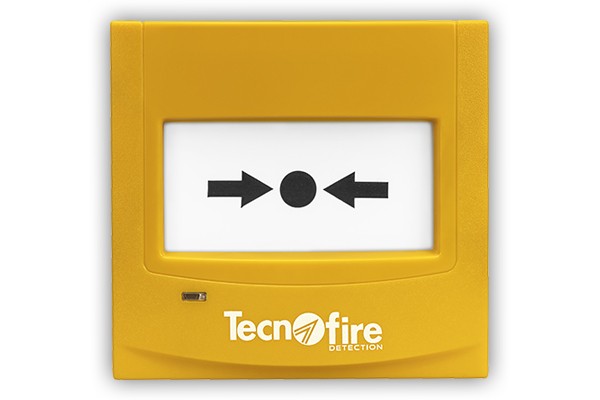

TFCP-CMR
Resettable conventional call point, technological controls signaling.
Resettable conventional call point, for technological controls. Manual operation, Type A (direct). Installation method: with piping in visible execution with pipe box, with piping in sub-track execution, on flush box 502, or, on flush box 503 with optional base TFCP-FRAME. Supplied accessories: tube box, opening key and reset button. Indoor use. Protection rating IP44. Polycarbonate casing V0. Yellow color. Dimensions (L x H x D) 93 x 88 x 41mm. With the tube box the dimension D becomes 76mm. Approved EN 54-11:2001+A1:2005.
Code: TF5TFCPCMR
