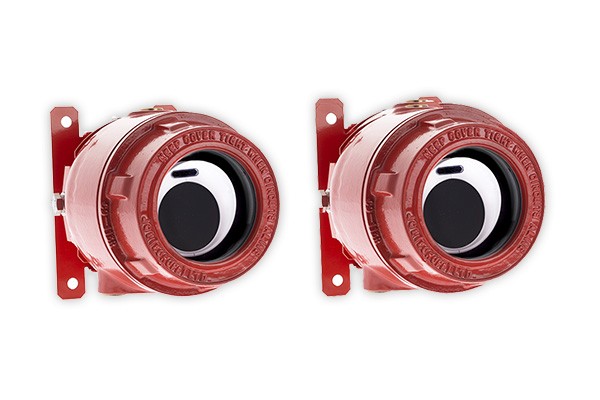

Additional detection unit for TFBD-EX linear optical smoke detection system for installation in ATEX classified areas. Remote installable controller, electrical connection between controller and TX and RX devices with two conductors. Adjustable range from 5 to 100 meters. Programmable sensitivity level.
Dynamic compensation of sensitivity degradation due to dust sediments. High immunity to false alarms. Excellent tolerance to disturbance events generated by vibrations and structural bending. Optional alignment tool and swivel mounting bracket. Fittings included.
24V DC power supply. Operating temperature -20 ° + 55 °. Degree of protection IP 66 EEx-d.
ATEX and EN 54-12 certified system.
Approval certificate 0786-CPD-20196.
