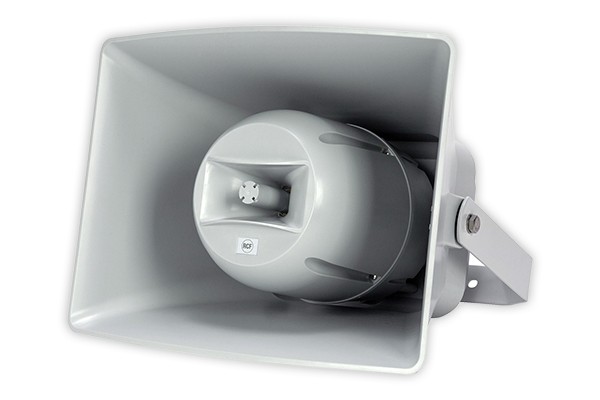

TFEVMH 61EN
2-way horn ABS 2 with driver and 60 W transformer, IP 66,EN 54-24
2-way ABS horn diffuser with 6.5" woofer and 1" tweeter. 60 W (100V) transformer. Selectable power 60-30-15-7.5W. Frequency response 100 Hz - 20000 Hz; Sound pressure: max SPL @1m: 115dB; max SPL @4m: 103dB; sensitivity 99dB; horizontal coverage angle: 70°; vertical coverage angle: 90°. ABS body and steel U-bracket. Ceramic inlet and outlet connectors with thermal protection fuse. Material: ABS; Protection rating: IP66; colour: Grey RAL 7035. Dimensions: (H x W x D) 332x418x391mm. Weight 7.35 kg. EN 54 -24 Certification 1488-CPR-0672/W.
Code: TF21EVMH61EN
