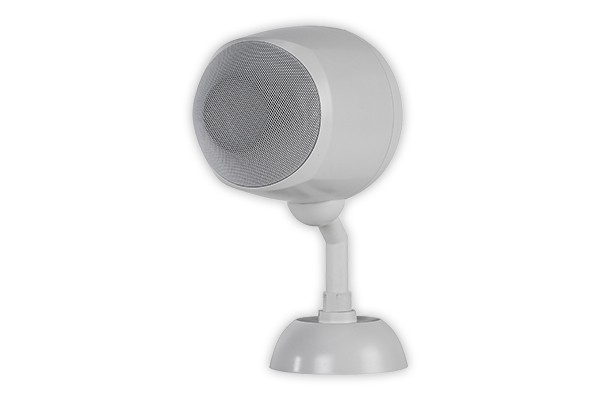

TFEVDP 5EN

TFEVDP 5EN

5" sound projector, ABS, IP 66, 20 W, 70-100 V - EN 54-24


5” ABS unidirectional sound projector. 20 W (100V) transformer. Metal mounting bracket included. Selectable power 20-10-5-2.5W. Frequency response 80 Hz - 20000 Hz; Sound pressure: max SPL @1m: 101dB; max SPL @4m: 89dB; sensitivity 88dB; coverage angle: 210°. Installable indoors and outdoors, suitable for all environments where a pleasant architectural impact is required. Ceramic inlet and outlet connectors with thermal protection fuse. Material: ABS with steel grid; Protection rating: IP65; colour: White RAL 9016 Dimensions: (H x W x P) 183x176x261mm; Weight 2.61kg.
EN 54 -24
Certification 0068-CPR-058/2014.

Code: TF21EVDP5EN
