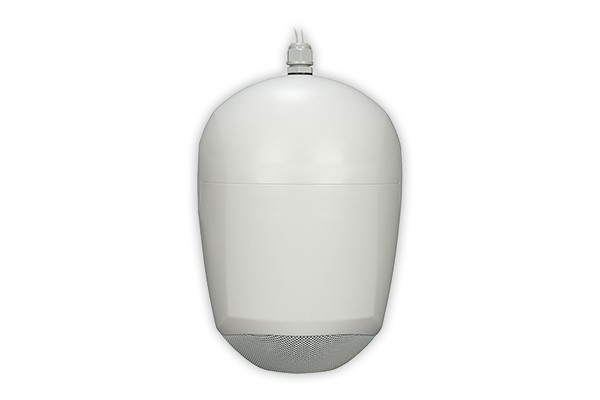

2-way suspended acoustic diffuser, in ABS with steel grid. 5” coaxial woofer and 0.75" dome tweeter. 20 W (100V) transformer. Selectable power 20-10-5-2.5W. Frequency response 80 Hz - 20000 Hz; Sound pressure: max SPL @1m: 101dB; max SPL @4m: 89dB; sensitivity 88dB; coverage angle: 170°. Metal fastening bracket with 5m cable supplied. Ceramic inlet and outlet connectors with thermal protection fuse. Material: ABS and steel grid; Protection rating: IP65; colour: White - RAL 9016. Dimensions: (H x W x D) 261x176x183mm Weight 2.79kg.
EN 54 -24
Certification 0068-CPR-058/2014.
