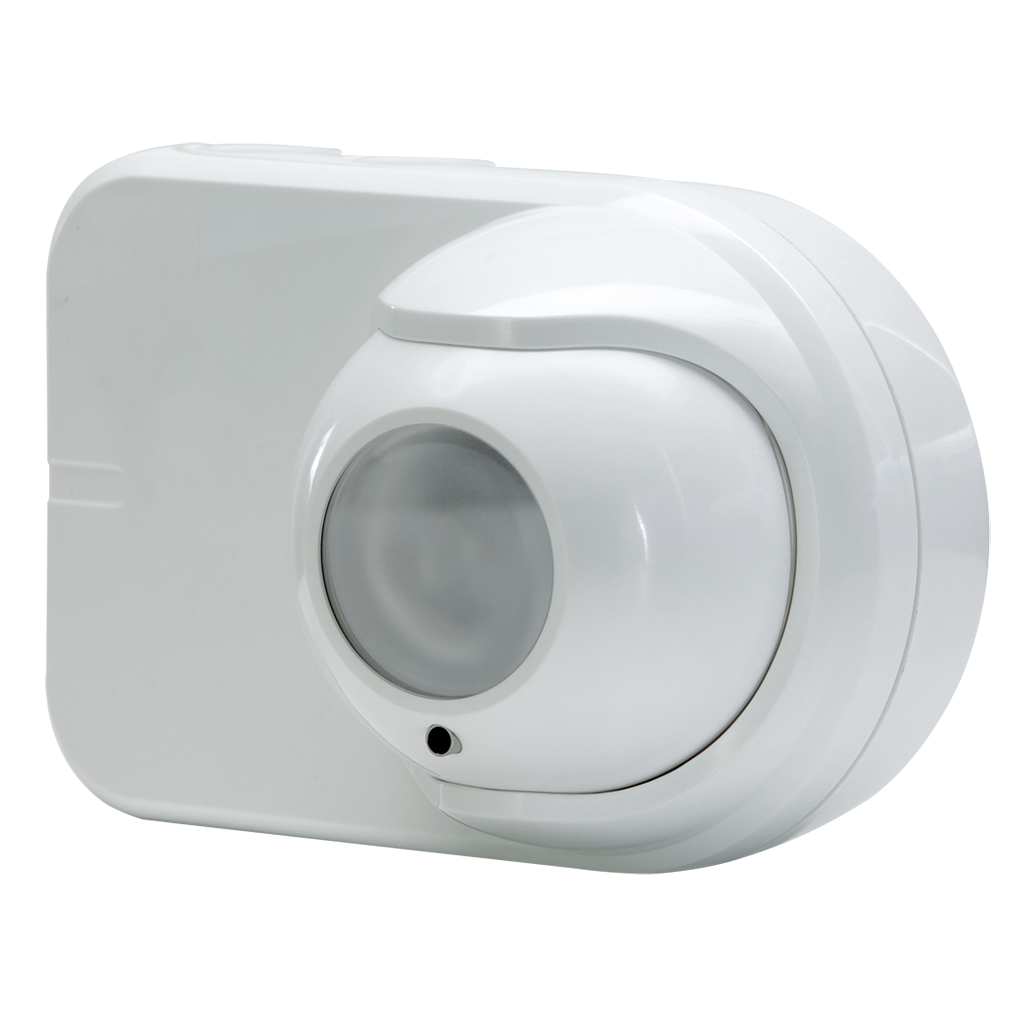

TFBD-OSE SP - Linear-type optical smoke detector TX

Standard power transmitter for linear-type optical smoke detector with point-to-point infrared or UV light. Multi-point configurations - Range 6 to 150m depending on the reception angle and the transmission power – Great configuration flexibility and adaptability to architectural requirements – Sophisticated algorithm of the receiver permits the mapping and control of signals coming from the transmitters – Easy installation and alignment thanks to a wide reception angle of the receiver and great orientation facilities – Easy setting through dip-switch – Dynamic compensation of the deterioration of sensitivity due to dust deposits – Good vibration and alignment tolerance – High false alarm immunity – Optional self-powered transmitter TFBD-OSE SP for alignment - Lithium battery (5 years autonomy) - FM, UL, VDS, NF, CPD, EN 54-12 – Certification number 0333-CPD-075387

Item no.

Description

TF9TFBDOSESP Linear-type optical smoke detector TX
